Voltage relay PH-102
Code of product:
NTRN10200
In stock
Only 1 left
OUT OF PRODUCTION
More Information
| Installation method | Wall mounted |
|---|---|
| Brand | Novatek |
| Max. load current | 32 А |
| Max. load power | 7 kW |
| Additional features | Operation with magnetic starter (contactor) |
| Operating method | Knobs (regulators) |
| Indication | Display |
Available delivery methods: Pickup from the store, Nova Poshta.
Payment methods: Bank transfer, Cash on delivery.
Detail product Description
The load is connected to the network either directly through relay contacts or via a magnetic starter, depending on the power requirements.
The relay can operate in four independent modes:
- voltage relay
- minimum voltage relay
- maximum voltage relay
- time relay with delayed switching

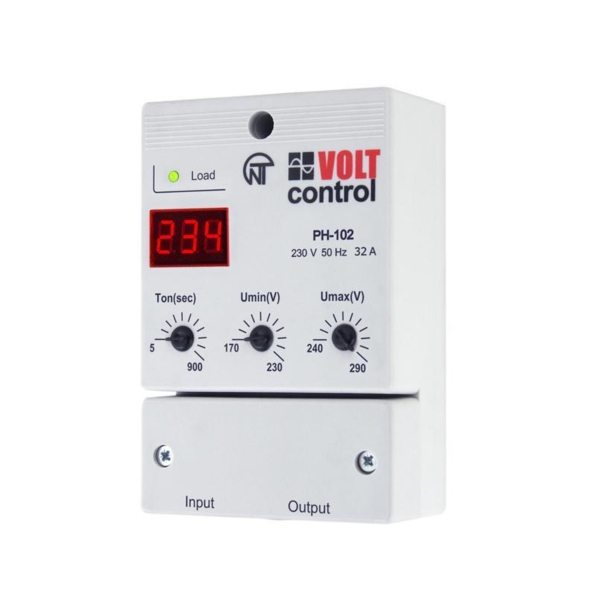

The device’s front panel has a load status indicator (on/off) and a three-digit seven-segment display, which shows:
- the current voltage level
- the exact value of the set parameter
- the time remaining until the load is reconnected
- emergency load disconnection (flashing of the current voltage)
The potentiometer knobs on the front panel allow the user to set:
- the maximum permissible voltage threshold
- the minimum permissible voltage threshold
- the delay time for reconnecting the load after network parameters are restored
PH-102 relay includes a network filter that protects the connected load from high-voltage impulse interference
