CURRENT RELAYS AND POWER LIMITERS
Filter
-
![]()
Voltage relay РН-240t- Enclosure
- 2 DIN (36 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Max. load current
- 40
- Max. load power
- 9
- Controlled parameters
- Voltage, Current, Power
-
![]()

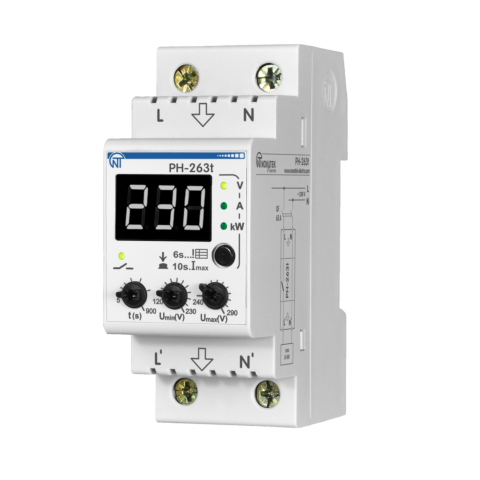

Voltage relay РН-263t- Enclosure
- 2 DIN (36 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Max. load current
- 63
- Max. load power
- 14
- Controlled parameters
- Voltage, Current, Power
-
![]()

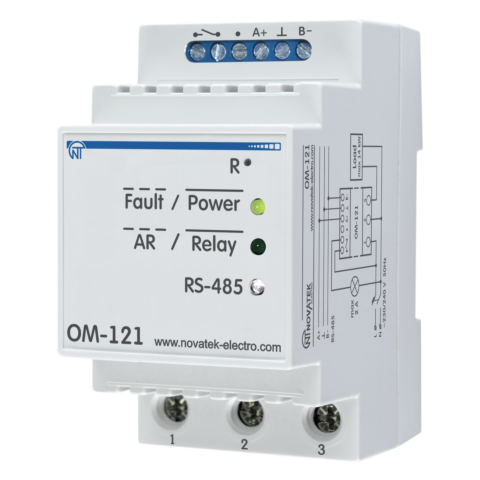

Combined network parameter meter (Power limiter) OM-121- Enclosure
- 3 DIN (54 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Controlled parameters
- Voltage, Current, Power
- Additional features
- Operation with magnetic starter (contactor), On/off protection, Voltage protection, PC software, Modbus protocol support
- Max. switching current
- 63
-
![]()

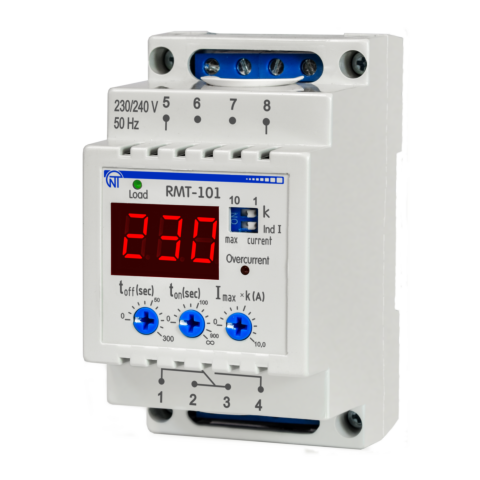

Maximal current relay RMT-101- Enclosure
- 3 DIN (54 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Controlled parameters
- Current
- Additional features
- Operation with magnetic starter (contactor)
- Max. switching current
- 8 A / determined by contactor
-
![]()

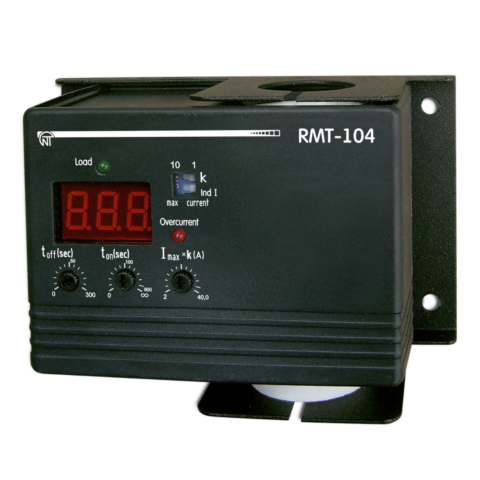

Maximal current relay RMT-104- Installation method
- Wall mounted
- Rated operating voltage
- 230/240 АC
- Controlled parameters
- Current
- Additional features
- Operation with magnetic starter (contactor)
- Max. switching current
- 8 A / determined by contactor
- Measuring current
- 400 А
-
![]()

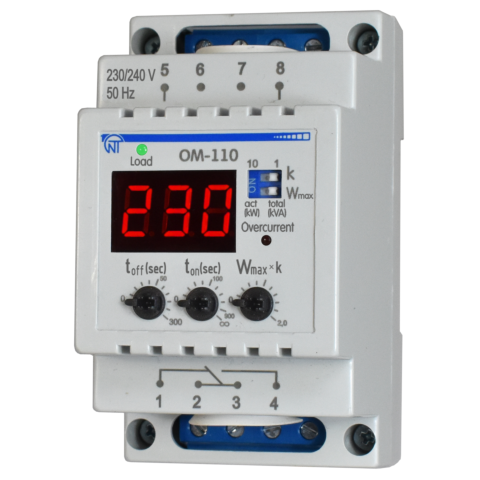

Single phase power limiter ОМ-110- Enclosure
- 3 DIN (54 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Controlled parameters
- Voltage, Power
- Additional features
- Operation with magnetic starter (contactor), Voltage protection
- Max. switching current
- 8 A / determined by contactor
-
![]()

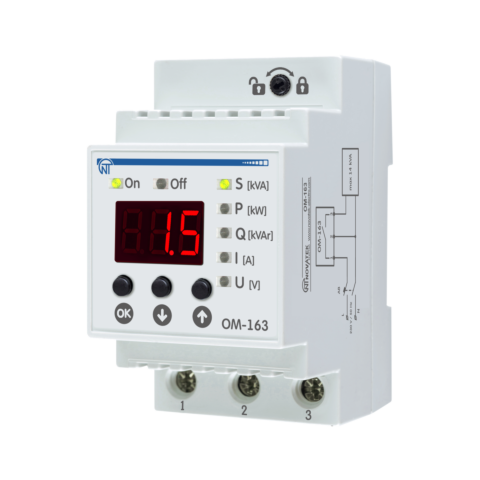

Power limiting relay ОМ-163- Enclosure
- 3 DIN (54 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/240 АC
- Max. load current
- 63
- Max. load power
- 14
- Controlled parameters
- Voltage, Current, Power
-
![]()

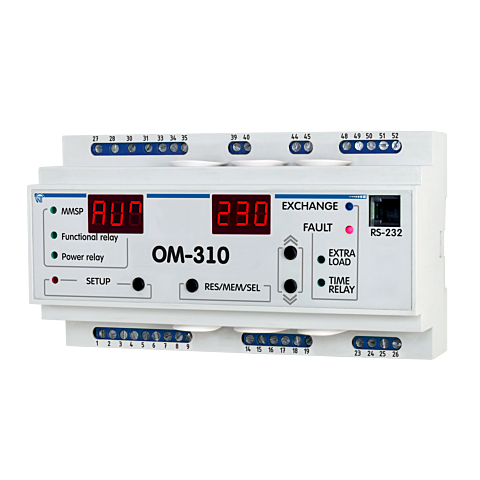

Power limiter OM-310- Enclosure
- 9 DIN (162 mm)
- Installation method
- Into a panel (DIN rail)
- Rated operating voltage
- 230/400 AC (phase/line voltage)
- Controlled parameters
- Voltage, Current, Power
- Additional features
- On/off protection, Voltage protection, PC software, Modbus protocol support, Timer
- Max. switching current
- 8 A / determined by contactor
